Java PriorityQueue
(with Example)

Sven Woltmann
Sven Woltmann
April 26, 2022

In this part of the tutorial series, I will introduce you to a queue that, strictly speaking, is not a queue at all: the PriorityQueue.

We are here in the class hierarchy:

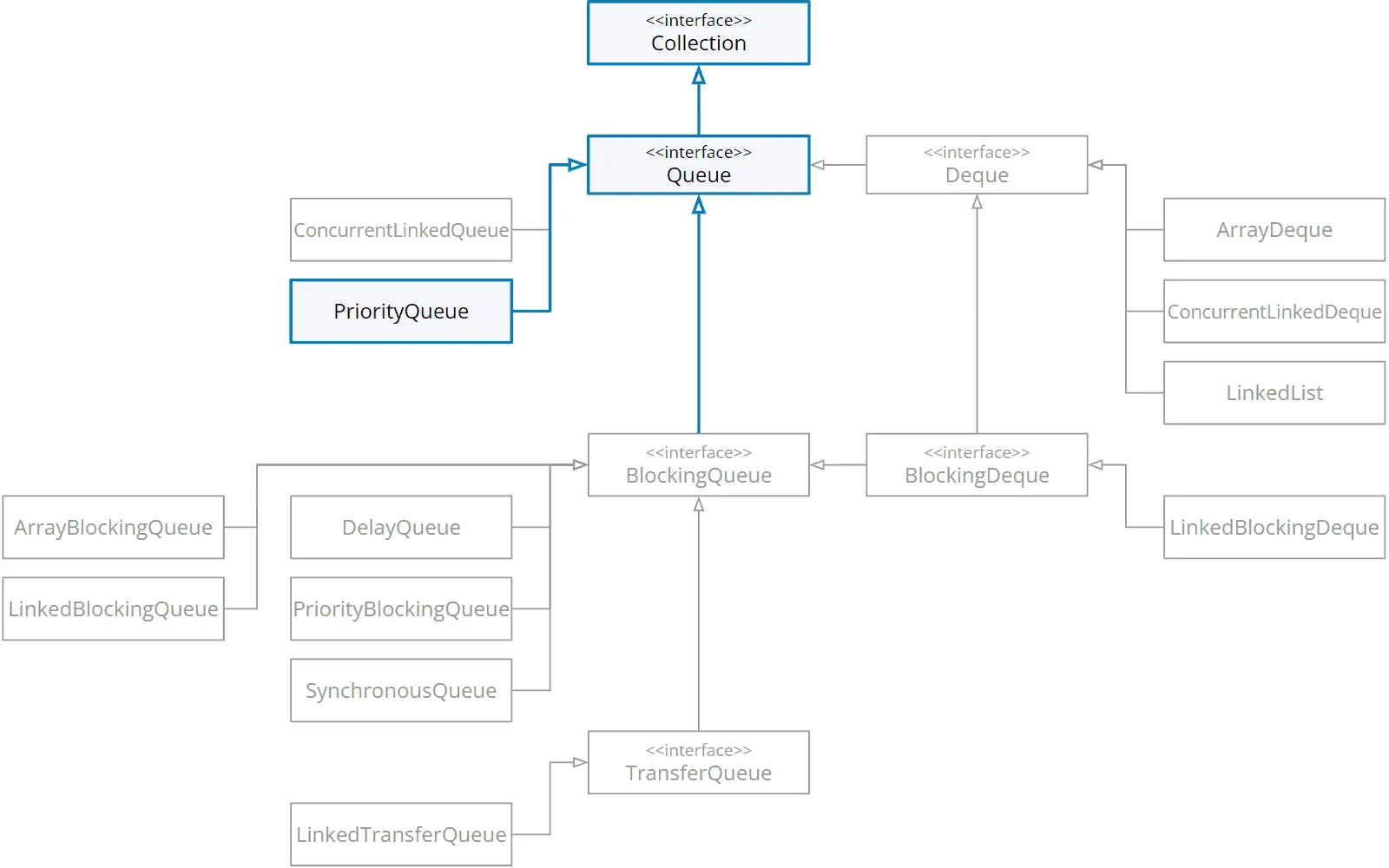

PriorityQueue in the class hierarchy
PriorityQueue in the class hierarchy

What Is a Priority Queue?

A priority queue is not a queue in the classical sense. The reason is that the elements are not retrieved in FIFO order but according to their priority. The element with the highest priority is always taken first – regardless of when it was inserted into the queue.

The following example shows a priority queue with elements of priority 10 (highest priority), 20, etc., to 80 (lowest priority). Another element with priority 45 is inserted into the queue. The queue then automatically ensures that this element is removed after the element with priority 40 and before the element with priority 50.

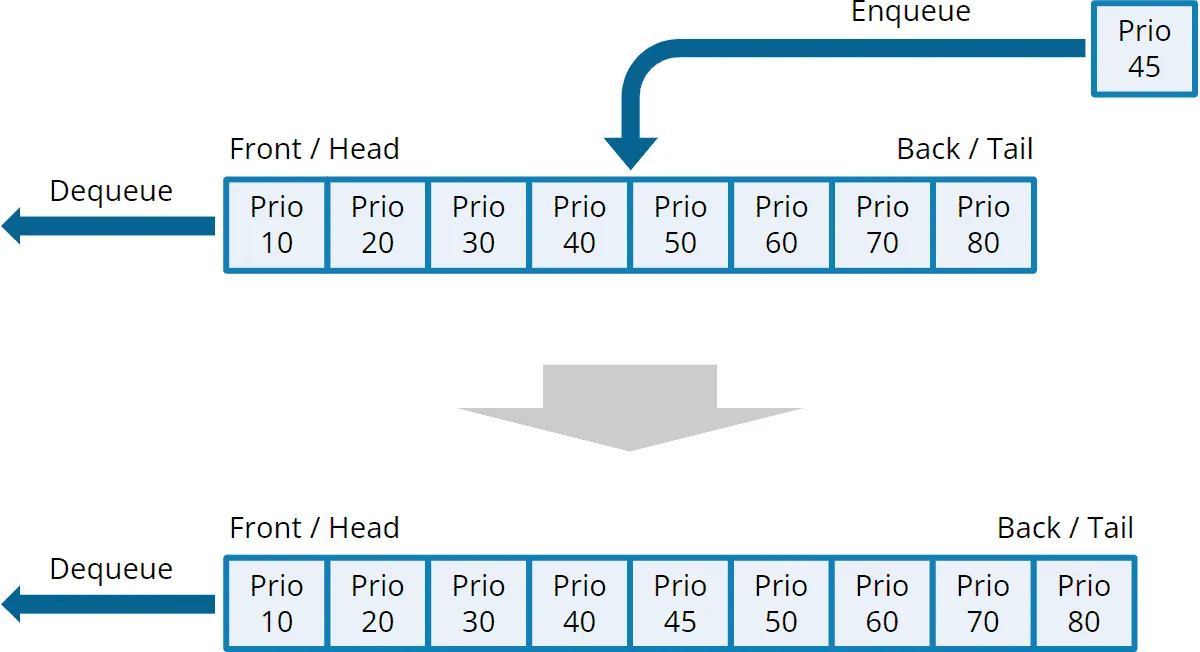

Inserting an element into a priory queue
Inserting an element into a priory queue

Which Data Structure Is Used to Implement a Priority Queue?

Priority queues are usually implemented with a heap.

In the last part of this tutorial series, I will show you how to implement a priority queue using a heap yourself.

Java PriorityQueue Characteristics

With the java.util.PriorityQueue class, the dequeue order results either from the elements' natural order¹ or according to a comparator¹ passed to the constructor. The underlying data structure is a min-heap, i.e., the smallest element is always at the head of the queue.

The sort order is not stable, i.e., two elements that are in the same position according to the sort order are not necessarily removed in the same order as they were inserted into the queue.

PriorityQueue is neither thread-safe nor blocking. A thread-safe, blocking counterpart is the PriorityBlockingQueue.

The queue's characteristics are:

Underlying data structureThread-safe?Blocking/
non-blocking
Bounded/
unbounded
Iterator type
Min-heap
(stored in an array)
NoNon-blockingUnboundedFail-fast²

By the way, PriorityQueue does not violate the Liskov substitution principle (LSP). After all, the Queue interface's documentation says: "Queues typically, but do not necessarily, order elements in a FIFO (first-in-first-out) manner."

¹ You can read all about the "natural order" of objects and sorting-by-comparator in the "Comparing Java Objects" article.

² Fail-fast: The iterator throws a ConcurrentModificationException if elements are added to or removed from the queue during iteration.

You can use PriorityQueue when a non-thread-safe queue with a dequeue order as described above is required.

However, be aware that PriorityQueue is used in very few places in the JDK and, thus, there is a certain probability of the presence of bugs (what is little used is little tested).

PriorityQueue Example

The following example shows how to create a priority queue in Java and how to write several random numbers into the queue and then take them out again (→ code on GitHub).

We do not specify a comparator, i.e. the integer elements are sorted according to their natural order.

public class PriorityQueueExample { public static void main(String[] args) { Queue<Integer> queue = new PriorityQueue<>(); // Enqueue random numbers for (int i = 0; i < 8; i++) { int element = ThreadLocalRandom.current().nextInt(100); queue.offer(element); System.out.printf("queue.offer(%2d) --> queue = %s%n", element, queue); } // Dequeue all elements while (!queue.isEmpty()) { Integer element = queue.poll(); System.out.printf("queue.poll() = %2d --> queue = %s%n", element, queue); } } }
Code language: Java (java)

The following is an example output of the program:

queue.offer(80) --> queue = [80] queue.offer(14) --> queue = [14, 80] queue.offer(10) --> queue = [10, 80, 14] queue.offer(50) --> queue = [10, 50, 14, 80] queue.offer( 9) --> queue = [9, 10, 14, 80, 50] queue.offer(58) --> queue = [9, 10, 14, 80, 50, 58] queue.offer(41) --> queue = [9, 10, 14, 80, 50, 58, 41] queue.offer( 1) --> queue = [1, 9, 14, 10, 50, 58, 41, 80] queue.poll() = 1 --> queue = [9, 10, 14, 80, 50, 58, 41] queue.poll() = 9 --> queue = [10, 41, 14, 80, 50, 58] queue.poll() = 10 --> queue = [14, 41, 58, 80, 50] queue.poll() = 14 --> queue = [41, 50, 58, 80] queue.poll() = 41 --> queue = [50, 80, 58] queue.poll() = 50 --> queue = [58, 80] queue.poll() = 58 --> queue = [80] queue.poll() = 80 --> queue = []
Code language: plaintext (plaintext)

You can see clearly:

  • how eight elements are inserted into the priority queue,
  • how the elements in the priority queue are shown in supposedly random order (in fact, it is the array representation of the min-heap),
  • that the smallest element is always at the head of the queue (left),
  • how the elements are removed in ascending order.

PriorityQueue with a Comparator

In the previous example, we created a PriorityQueue using the default constructor. This causes the elements to be sorted according to their natural order.

However, we can also specify a custom comparator for the priority queue. In the following example, we create tasks with a name and a priority, and these tasks are to be retrieved sorted by priority.

We define the comparator for this simply as:

Comparator<Task> comparator = Comparator.comparing(Task::name);
Code language: Java (java)

If you are not familiar with this notation – it creates a comparator that sorts tasks by priority. This notation is much more readable than the following comparator defined with a lambda:

Comparator<Task> comparator = (task1, task2) -> Integer.compare(task1.priority(), task2.priority());
Code language: Java (java)

Here is the full example code (PriorityQueueWithCustomComparatorExample class on GitHub):

public class PriorityQueueWithCustomComparatorExample { public static void main(String[] args) { Comparator<Task> comparator = Comparator.comparingInt(Task::priority); Queue<Task> queue = new PriorityQueue<>(comparator); // Enqueue tasks with random priorities for (int i = 0; i < 5; i++) { String name = "Task " + (i + 1); int priority = ThreadLocalRandom.current().nextInt(10, 100); Task task = new Task(name, priority); queue.offer(task); System.out.printf("queue.offer(%s) --> queue = %s%n", task, queue); } // Dequeue all elements while (!queue.isEmpty()) { System.out.printf("queue.poll() = %s --> queue = %s%n", queue.poll(), queue); } } private record Task(String name, int priority) { @Override public String toString() { return name + " (prio " + priority + ")"; } } }
Code language: Java (java)

An example output looks as follows:

queue.offer(Task 1 (prio 93)) --> queue = [Task 1 (prio 93)] queue.offer(Task 2 (prio 76)) --> queue = [Task 2 (prio 76), Task 1 (prio 93)] queue.offer(Task 3 (prio 92)) --> queue = [Task 2 (prio 76), Task 1 (prio 93), Task 3 (prio 92)] queue.offer(Task 4 (prio 51)) --> queue = [Task 4 (prio 51), Task 2 (prio 76), Task 3 (prio 92), Task 1 (prio 93)] queue.offer(Task 5 (prio 35)) --> queue = [Task 5 (prio 35), Task 4 (prio 51), Task 3 (prio 92), Task 1 (prio 93), Task 2 (prio 76)] queue.poll() = Task 5 (prio 35) --> queue = [Task 4 (prio 51), Task 2 (prio 76), Task 3 (prio 92), Task 1 (prio 93)] queue.poll() = Task 4 (prio 51) --> queue = [Task 2 (prio 76), Task 1 (prio 93), Task 3 (prio 92)] queue.poll() = Task 2 (prio 76) --> queue = [Task 3 (prio 92), Task 1 (prio 93)] queue.poll() = Task 3 (prio 92) --> queue = [Task 1 (prio 93)] queue.poll() = Task 1 (prio 93) --> queue = []
Code language: plaintext (plaintext)

We can clearly see how the tasks are taken according to priority (priority 51 first, priority 93 last).

To retrieve the tasks sorted alphabetically by name, we would only need to change the comparator to:

Comparator<Task> comparator = Comparator.comparing(Task::name);
Code language: Java (java)

PriorityQueue Time Complexity

The time required for enqueue and dequeue operations in the Java PriorityQueue is equal to the time required to insert and extract from a heap.

Thus, the time complexity for both operations is: O(n log n)

By using a heap, the element with the highest priority is always automatically at the head of the queue and can be taken out in constant time.

Thus, the time complexity for the peek operation is: O(1)

(Here, you can find an introduction to time complexity.)

Summary and Outlook

This article has explained what a priority queue is in general, the characteristics of the Java PriorityQueue, when to use it, how to specify the dequeue order with a custom comparator, and the time complexities of the priority queue operations are.

In the following article, we come to the first blocking queue: LinkedBlockingQueue.

If you still have questions, please ask them via the comment function. Do you want to be informed about new tutorials and articles? Then click here to sign up for the HappyCoders.eu newsletter.
